Operational tests at focal distance 6 m
At the course of
experiments there was rather difficult provide free space area with
distance 6 m at the laboratory conditions. Because of that a
specific permissions as underground bunker without windows was
selected for this aim. Experiments were executed at summer time,
temperature at the permission was at the level as 19 C degrees.
During experiments several persons passed in and out at the area of
imaging. An option of video registration wasn't provided those
moment because of not-ready software, so several photos were made by photo camera. It need
to be mentioned that some defects in images were fixed at the time of
experiments as the result of interference between several channels
of the receiver during operation. during Next stages of the project these
negative effects were reduced.
Some comments to the
images are presented below.
|
||
|
|
 |

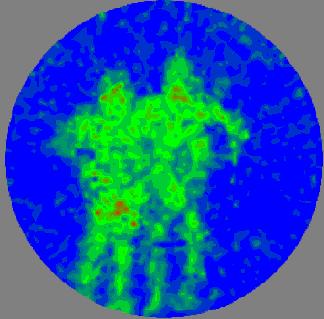

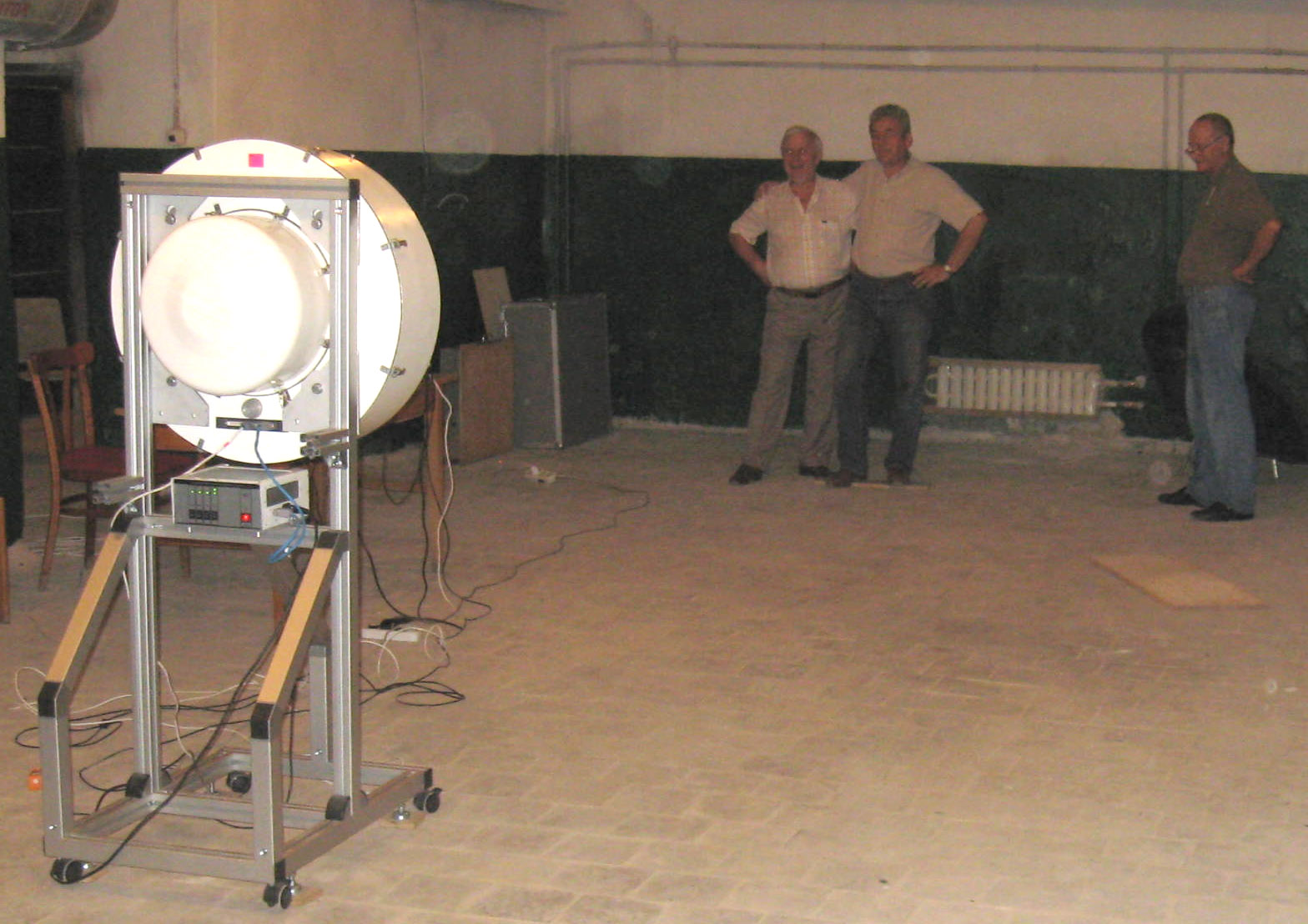

Two persons at the imaging area, distance 6 m, bunker. Several frames were integrated for better sensitivity. Some defects in images were fixed at the form of interference between frequency channels of the receiver.
|
 |
No photo |

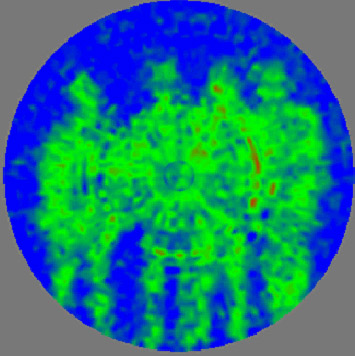

Four persons at the imaging area, distance 6 m, bunker.
Several frames were integrated for better sensitivity.
Some defects in images were fixed at the form of interference between frequency channels of the receiver.
|
